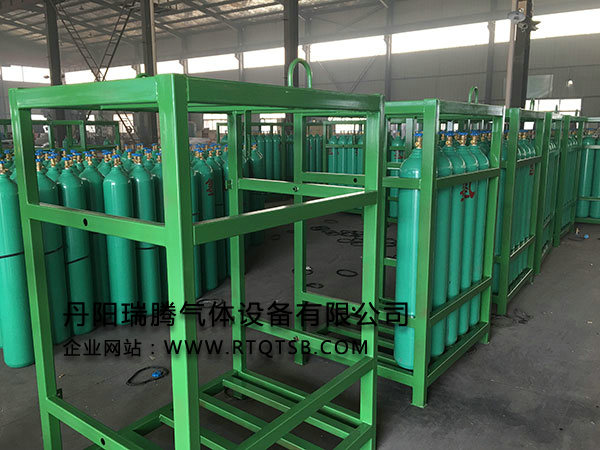

集裝格（又叫氣瓶架子）是按照國際標準生產，是一種技術先進的充裝、科技含量較高的匯流裝置，勞動強度小、操作簡單、運輸方便，適用于瓶裝氣體用量大的廠礦企業施工場地，集裝供氣和大規模用氣的單位和用戶。集裝格一般按用戶要求可以高壓充入高壓輸出，也可高壓充入經過減壓器減壓，低壓輸出。
目前有氧氣集裝格、氮氣集裝格、氬氣集裝格、氦氣集裝格、二氧化碳集裝格、混合氣集裝格、氫氣集裝格、CNG集裝格等，有立式、臥式兩種，規格有6、9、12、16、20、25、30、40瓶組。氣瓶集裝裝置是最方便安全可靠，工作效益高的氣體包裝、運輸、使用解決方案。
Cylinder cascade (which is also called cylinder rack) is produced in accordance with the international standard. It is a kind of of filling device with advanced technology, high technology content.The labor intensity is small, operation is simple, transportation is convenient .It is applicable to industrial and mining enterprises with a large number of consumption of bottled gas, units and users with large demand of gas supply and gas consumption . According to customers’ requirements, it can be filled and exported in high pressure. It also can be filled in high pressure and exported in low pressure through regulator.
There are oxygen, nitrogen,argon,helium, carbon dioxide, mixture gas, hydrogen , CNG cylinder cascade, etc..It can be devided into two kinds: vertical and horizontal type. There are 6, 9, 12, 16, 20, 25, 30, 40 cylinder cascades. Gas cylinder assembly is the most convenient and reliable gas packaging with convenient transportation.

技術參數：
壓力：15Mpa
輸出壓力：按用戶要求
總重量：1500kg
結構：鋼架集容管：φ28X5、φ27X3
集容管材質：H62、1cr18ni9ti
分支管：φ6x1.5、φ20X3
分支管材質：T4、1cr18ni9ti
緊固方式：焊接和螺絲緊固
Parameter:
Pressure:15Mpa
The output pressure: Customized
Total Weight: 1500kg
Structure: Steel tube collector: φ28X5、φ27X3
Material of steel tube collector: H62、1cr18ni9ti
Branched pipe:φ6x1.5、φ20X3
Material of branched type:T4、1cr18ni9ti
Fastening method: welding and screw fastening
