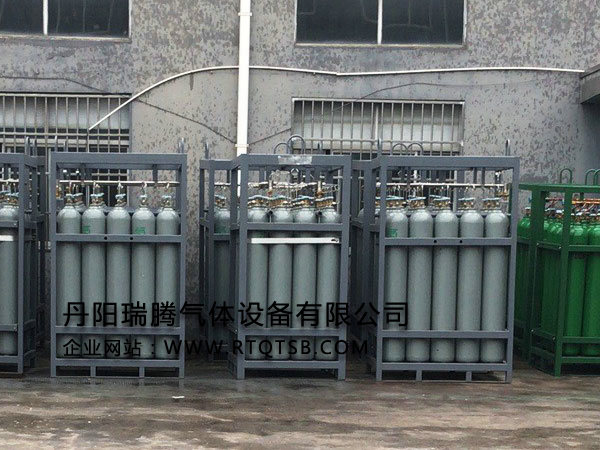

立式集裝格是用來將散裝氣瓶集束在一起的金屬結構架，要求結構緊湊，設計合理，重量輕，抗拉強度強。集裝格適用于集裝供氣和大規模用氣的單位和用戶。使之能便于叉車的叉裝，吊車的吊裝和車輛運輸以及工作場地的隨時移動。集裝格的氧、氮、氬氣的工作壓力是15Mpa，集裝閣一般按用戶要求可以高壓充入高壓輸出，也可高壓充入經過減壓器減壓，低壓輸出。
The vertical cylinder cascade is a metal structure frame used to cluster the bulk gas cylinders. It requires compact structure, reasonable design, light weight and strong tensile strength. It is applicable to units and users with large demand of gas supply and gas consumption .Make it easy for forklift fork loading, crane lifting and vehicle transportation, and moving the work site at any time. The working pressure of the oxygen, nitrogen and argoncylinder cascade is 15Mpa. According to customers’ requirements, it can be filled and exported in high pressure. It also can be filled in high pressure and exported in low pressure through regulator.
常用規格有9、12、15、16、20、25瓶組等多種規格，及分為臥式和立式之分。另可以根據用戶需求，設計制造符合安全規范的氣瓶集裝裝置。氣瓶集裝裝置是當前安全、方便的氣體包裝、運輸、使用解決方案。
There are 9, 12, 15, 16, 20, 25 common cylinder cascades.It can be devided into two kinds: vertical and horizontal type. We can meet customers’ requirements design and produce gas cylinder cascade in accordance with safety standard. Gas cylinder assembly is the most convenient and reliable gas packaging with convenient transportation.


技術參數：
壓力：15Mpa
輸出壓力：按用戶要求
總重量：1500kg
結構：鋼架集容管：φ28X5、φ27X3
集容管材質：H62、1cr18ni9ti
分支管：φ6x1.5、φ20X3
分支管材質：T4、1cr18ni9ti
緊固方式：焊接和螺絲緊固

Parameter:
Pressure: 15MPa
Output pressure: Customized
Total Weight: 1500kg
Structure: Steel tube collector: φ28X5、φ27X3
Material of steel tube collector: H62、1cr18ni9ti
Branched pipe:φ6x1.5、φ20X3
Material of branched type:T4、1cr18ni9ti
Fastening method: welding and screw fastening
